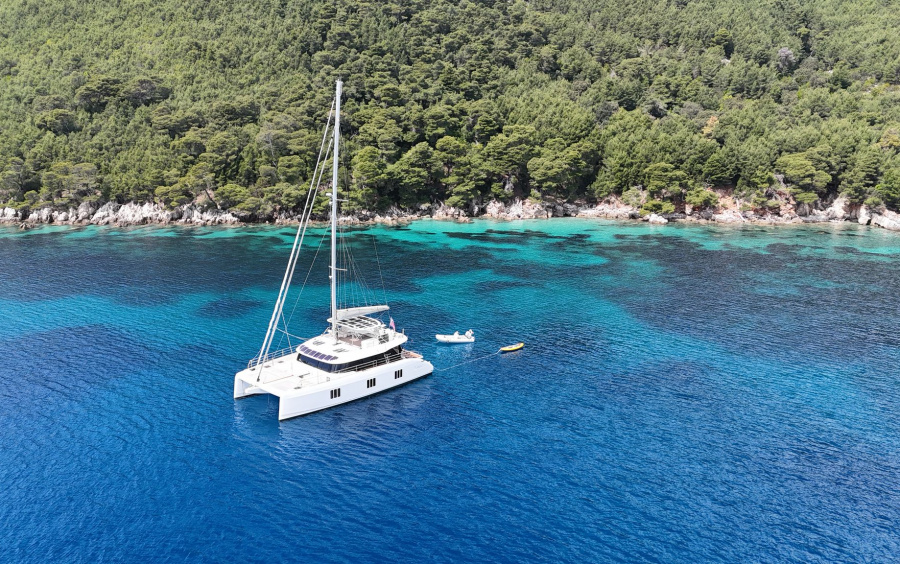

Sunreef 60 Sailing Catamaran
Sunreef 60 is a versatile luxury sailing catamaran, designed for exclusive getaways, private charters, and long-distance ocean cruising. Combining elegant lines with modern craftsmanship, this all-around leisure yacht masterfully blends comfort, performance, and style in a layout where interior and exterior spaces flow seamlessly into one another.
With her refreshed superstructure concept, the Sunreef 60 NEXT embraces inspired enhancements, elevating design, and livability on every level. The smart bridge deck and refined superstructure deliver a superior level of onboard comfort, maximizing space and natural light. Generous use of natural wood decking, high protective bulwarks, and gracefully drawn hull contours underscore the yacht’s modern yet timeless aesthetic.
MORE
With her refreshed superstructure concept, the Sunreef 60 NEXT embraces inspired enhancements, elevating design, and livability on every level. The smart bridge deck and refined superstructure deliver a superior level of onboard comfort, maximizing space and natural light. Generous use of natural wood decking, high protective bulwarks, and gracefully drawn hull contours underscore the yacht’s modern yet timeless aesthetic.
- Length19,22 m
- Beam10.20 m
- Weight66000 kg
- Draft, max2.32 m
- Cruise speed7 mile/hour
- Water tank800 l.
- Decks3
- People on board20 people
- Crew1 people
- Cabins4
- Toiletyes
- Fuel capacity3650 l.
- Equipment
- Engines

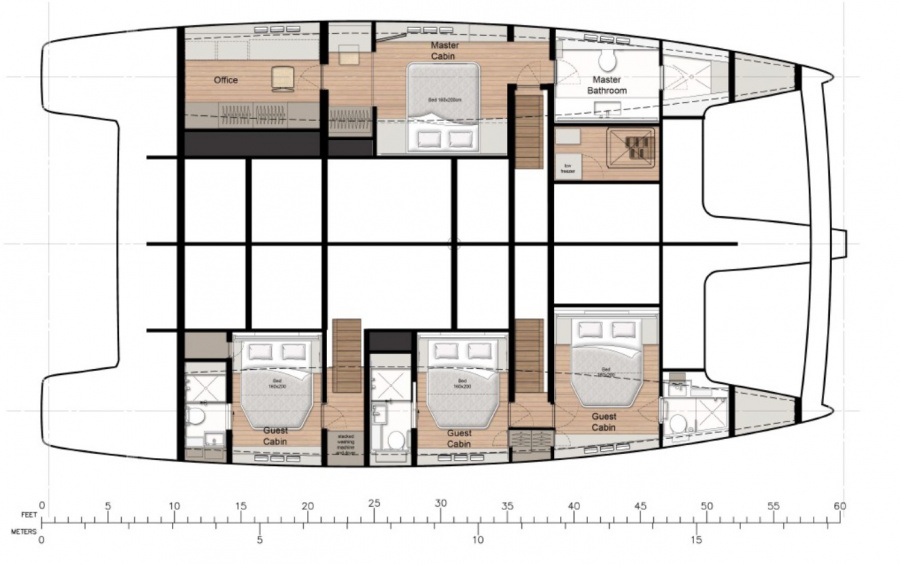

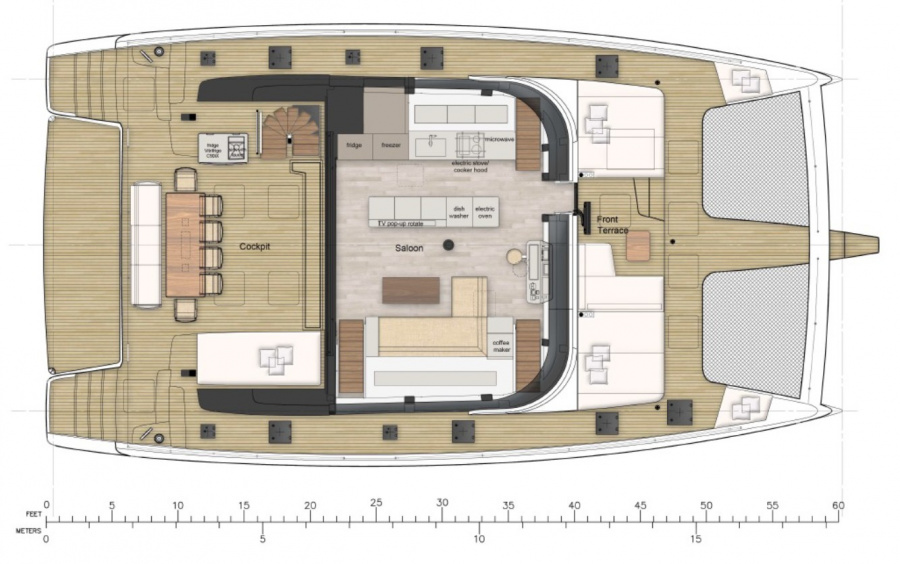

| Sunreef 60A custom version: Galley up (Master cabin with and office + 3 guest cabins) |
| Lazy jack and lazy bag |

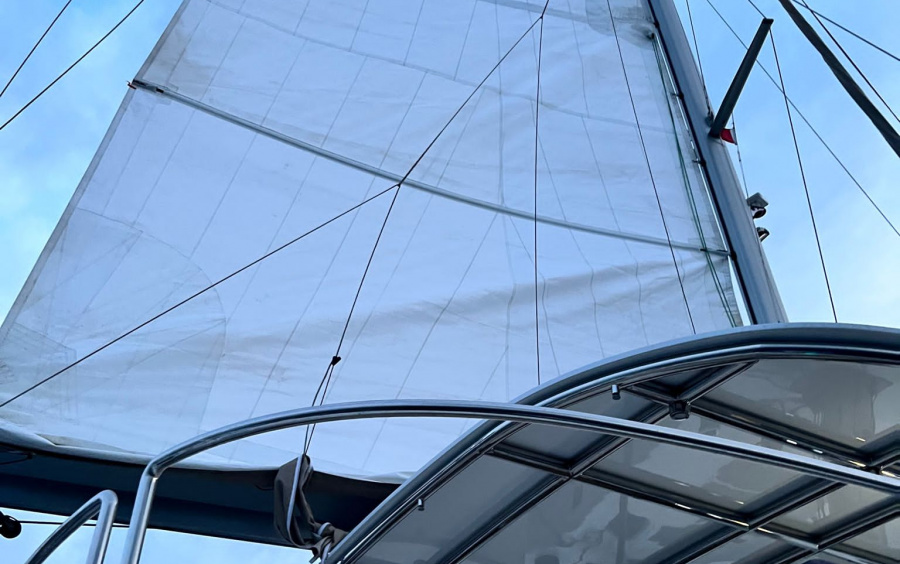

| Fully battened mainsail hydranet top square, with 2 reefs + tri-radial |
| Upgrade to Hydranet Genoa with SUNTT 5089 152 Beige Chine, UV protection |
| Electric furling system for Genoa |
| Gennaker Polyester |
| Complete gear for Gennaker/code 0, including electric furler |
| Top-down furling system for Gennaker |
| Tenderlift SR70 hydraulic platform 1000kg capacity |
| Aluminum mast and aluminum boom |
| 2x electric capstans for mooring |
| Windlass upgrade to REGAL 3000W + 100m chain (diameter 14mm DIN) |
| Upgrade to all electric winches |
| Upgrade to Anchor 80kg UA (only with option 12.1) |
| Rudders constructed of a moulded sandwich lamination glass/ vinylester; Rudder stocks made of aluminum alloy; Self-aligning lower and top bearings; Rudder alignment system |
| 2 emergency tillers |
| 5-spoke steering wheel (diameter 800mm) |
| Hydraulic steering system |
| Additional anchor 20kg + 20m galvanized chain (diameter 10mm) |
| 50m tow line |
| Mooring kit (8 fenders + 4 mooring ropes) |
| Sunshade (Front Terrace and Flybridge) |
| Cup holders (220EUR/pcs) |
| Lateral and stern boarding ladder |
| Integrated fishing rods holders |
| Upgrade of Manual gangway to carbon CARBO GALE 280 |
| Cockpit windshield - privacy screen |
| Cockpit windshield - transparent canvas (Option 4.5): 6000EUR - 7% discount |
| Bauer Electric diving compressor 100L/min 90-330bar |
| Additional SPARE parts |
| Complete rescue equipment with life-rafts for 12 persons (with lifebuoy, rescuesling in bag, horeshoe buoy,fire blanket) |
| Emergency Position Indicating Radio Beacon |
| Gas detection system and alarm |
| Flybridge alarm relay |
| Compass (size 135mm) |
| Chronometer and barometer |
| Upgrade to RAYMARINE: 2x Axiom XL 16', Radar Quantum Doppler E70498 24" 4kW 608mm digital radome radar, evolution autopilot, AIS700, depth, speed & temp sensor, wind sensor, GPS, Ray90 VHF with dual station, searchlight + control unit, fog horn |
| Day and Night IP cameras: 2x Forward, 2x Stern, 1x Mast looking down |
| AR200 IP Camera Stabilization Module for Augmented Reality for Mast Camera |
| 220WX Weather Station Dual NMEA |
| Additional anthenna so AIS and VHF are separate |
| Chain counter of helmstation |
| Tablet holder at helmstation |
| Upgrade of 2x base engines to 150hp (D3 Volvo Penta) |
| Stainless steel engine shafts |
| Engine speed control on flybridge |
| Hydraulic steering system |
| Rope cutters on both propeller shafts |
| Upgrade of fuel tanks to 2x 875L from 2 x500L |
| Fuel transfer between tanks |
| Bow thruster on starboard bow (Seipner SE170/250TC-IP) |
| Fuel consumption estimation system for Volvo Penta engines |
| Extra engine instruments including speed control at the navigation table |
| Additional Charger for engine starting batteries, one on each side |
| Automatic fire extinguishing system in the engine rooms (included in commercial adaptation) |
| Feathering propellers for 150hp engines instead of folding |
| Oil pump - Marco UPS3 Oil 12vdc |
| Bow pulpits |
| Port lights |
| Blocks and jammers |
| Deck light |
| Hatch at the top of the stairway between cockpit and flybridge |
| Upgrade to composite roof for stainless steel bimini |
| Cover kit for Flybridge navigation station and Flybridget table |
| Cockpit and skirts floor covered with synthetic teak-- light colour flexiteak |
| Deck covered with syntetic teak and installed flush hatches- light colour flexiteak |
| Flybridge covered with synthetic teak- light colour flexiteak |
| Track/mod lights under saloon table, under master bed, VIP bed and stairs to to bedrooms |
|
Additional covers: a. front terrace table b. sofa on the fly c. sofa in the cockpit d. life raft cover e. winch cover f. capstan cover g. lifebuoy cover h. FLY module bar i. cockpit table |
| Cummings main generator 19KVA, 50Hz, 230V |
| Cummings second generator 11KVA, 50Hz 230V |
| Night-Mode DC-25.6V Lithium battery bank upgrade from 11,2 kWh to 56 kWh including upgrade of charger and 230 Volts inverter |
| Additional Inverter 120V/ 60Hz/ 3000W + 10 Sockets |
| For the 2 alternators 24V, 75A each, upgrade to 110 amps |

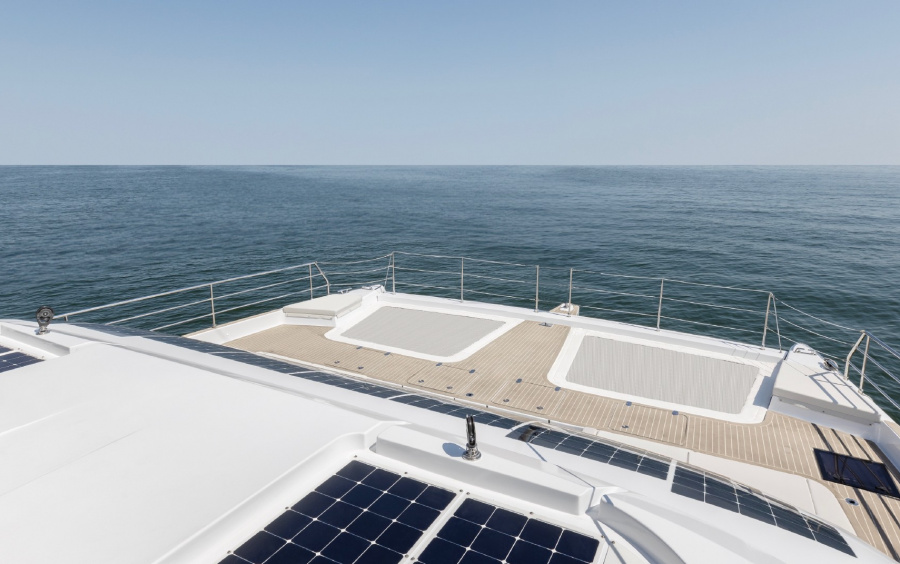

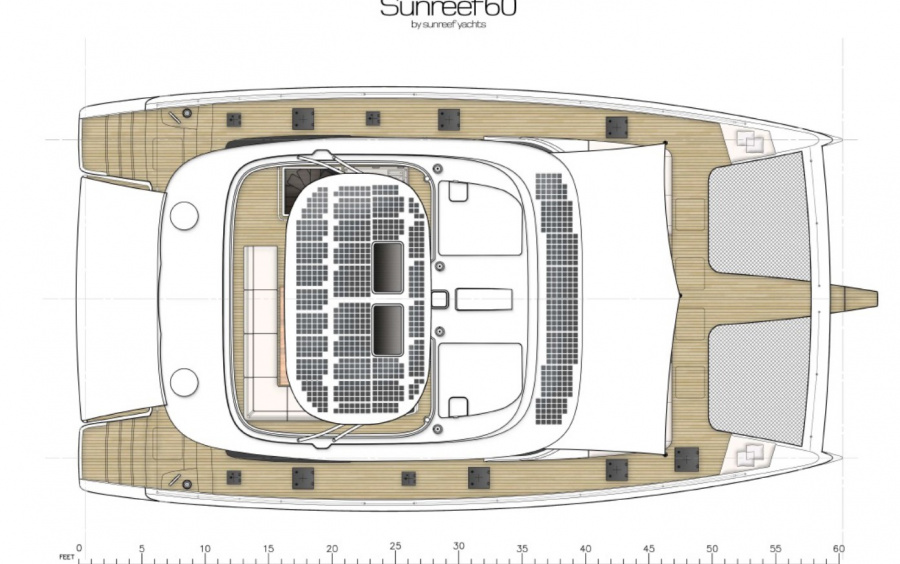

| 3.56 kWp solar panels on bimini, frontand back of flybridge |
| 1.71 kWp Maxeon Gen 3 solar panel (back FLY, sunpad FLY) |
| Interior spots lighting with LED lamps only |
| Navigation lights with LED lamps |
| Lights in engine rooms |
| Spot lights on front terrace deck and cockpit ceiling |
|
Domotic system for lights, controls, and D/C system, including dimmers for ceiling lights (Domotic system function: Control: - Lighting with dimming - Navigation lights - Black water pump Measurement: - Tank level monitoring with alarm: fresh water, black water, fuel - Battery and Victron charger monitoring with alarm: starter/ main batteries bank/ emergency batteries, (if installed) - Measurement of temperature in the engine room) |
| Exterior lighting package - underlighting of fixed furniture on flybridge and cockpit - LED stripe in white; cockpit ceiling two LED stripes surrounding in white; LED white stripes on skirts) |

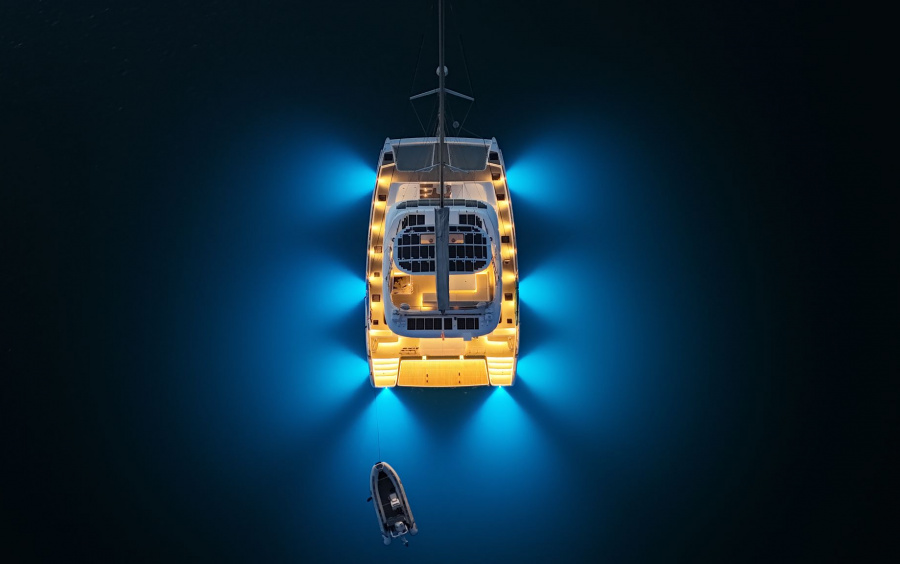

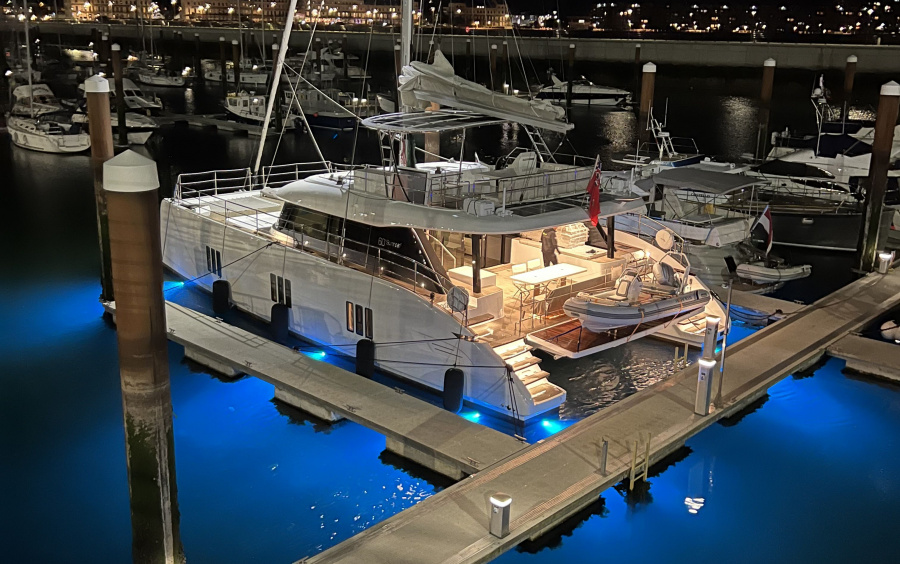

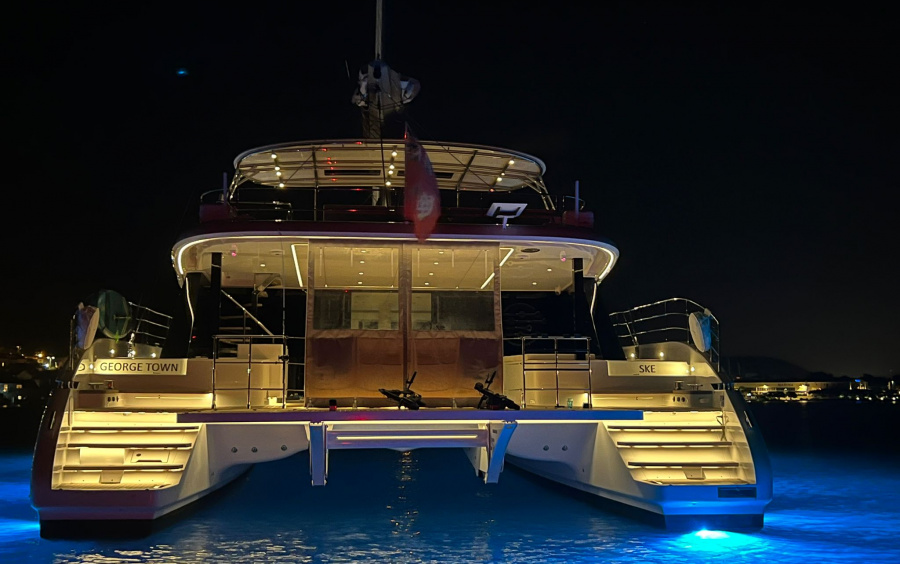

| Underwater lights LED, blue color |
| Mast LED courtesy lighting (one color to be chosen - white or blue) |
| Secret lights (possible with fixed table), price per unit |
| AC-230V 50Hz 1PH Change from standard to: main switchboard with semi-automatic change over shore-generators), 3 chargers (24V/100A), inverter (220V/50Hz/5000W), 2x shore power inlet 63A, 3x socket 230V in cabins, 4 in saloon, 4 in dining area and 4 in galley, 2xUSB socket in each cabin and 2x in saloon |
| Adjustable spotlight mounted on flybridge front and astern |
| Waterproof sockets in Cockpit, Front Terrace and Flybridge |
| Additional current circuit for washing machine, dryer, dishwasher to plug optionaly to the batteries. |
| Additional inside electrical sockets |
| Watermaker 95l/h - 24V (PH stabilizer and charcoal filters in outlet and separate 5 micron and 20 micron raw feed) |
| Watermaker 280l/h - 230V (PH stabilizer and charcoal filters in outlet and separate 5 micron and 20 micron raw feed)- tbc |
| Fresh water: 1x 800L equipped with level indicators, 1 pressurized pump, 2x water heaters of 80L each on sepraste on/off control |
| AcuVaTech Arrow 5 Water Purifier with Smart Faucet |
| 4 electrical bilge pumps |
| 2 manual bilge pumps |
| Additional Bilge pump in both forepeaks |
| Shower head on the starboard cockpit ceiling with mixing valve |
| Rectractble hand shower wand on port side |
| Pressurized freshwater deck and chain wash system in Flybridge, Cockpit, Front Terrace |
| Retractable hose (5mb) with shower head in chain locker for chain wash |
| Fresh water inlet (Connection between the boat's water network and the shore water supply) |
| Electric toilets 24V in bathrooms with fresh water flush |
| Upgrade of blackwater tank to 1x 500L |

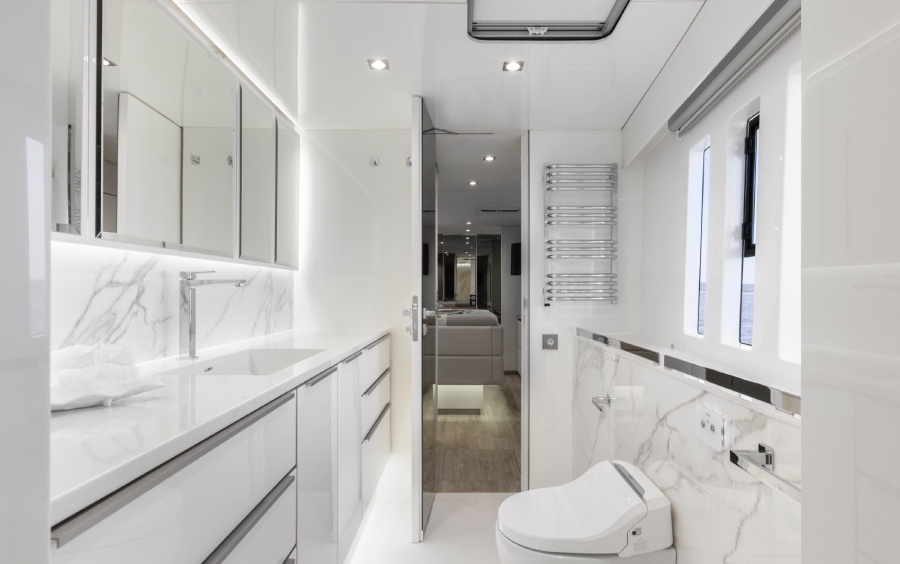

| Master Bathroom Bidet toilet with seat warmer |
| Saloon isalnd widescreen Samsung LED TV 50”4K QLED with installation (saloon) (with Network cable and HDMI cable to electronics) |
| Saloon Island TV lifting system up/down and rotate |
| Upgrade of Lifting system up/down with rotation |
| LG LED TV 32” in Master Cabin |
| Yamaha Home Cinema Receiver 7.2 + 5x ceiling speakers + 1x active subwoofer |
| 2 waterproof speakers in the cockpit and 2 on flybridge |
| 2 waterproof speakers in the front deck |
| Yamaha Power Network Receiver + 2 speakers |
| 5G/LTE Wifi antenna worldwide |
| Peplink AP One AX Access Point for Wifi router |
| CAT 6 network cable with RJ45 connections from switch to office |
| CAT 6 network cable with RJ45 connections from switch to master bedroom TV |
| SYNOLOGY NAS with the LICENSE FOR CONNECTING 2 CCTV |
| STARLINK - support + instalation |
| Wiring for 2x Dahua security cameras and recorder in the cabinet |
| Curtains and backdrop for entrance door |
| Manually concealed skyscreen on cabin ceiling hatches |
| Flybridge cushions set + flybridge mattresses + 20pcs of decorative pillows |
| Cockpit and front deck mattresses + 20pcs of decorative pillows |
| Electrically recessed blinds in the saloon, master cabin and nav station (manual in the cabins) |
| Air conditioning 70 000 BTU/h |
| Safe (price per unit) |
| Bosch washing machine/dryer with complete installation |

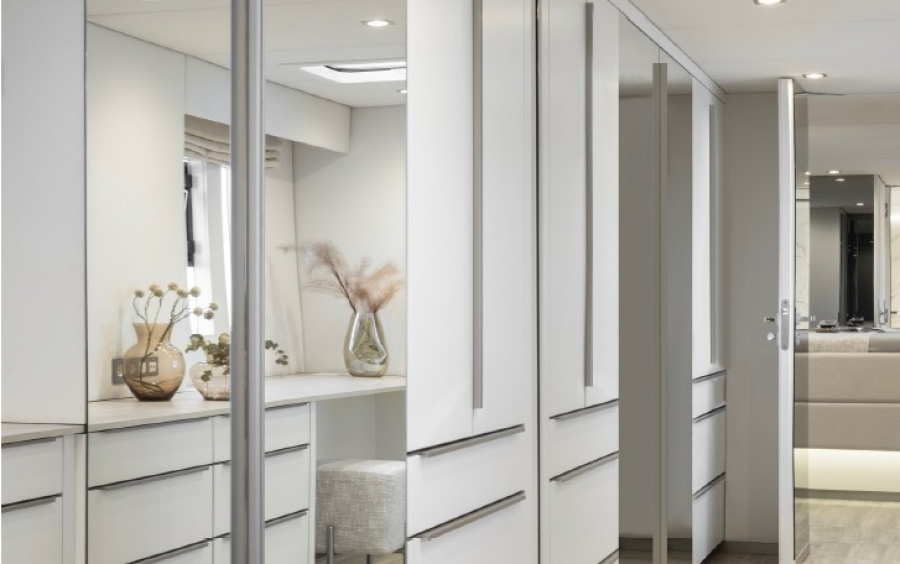

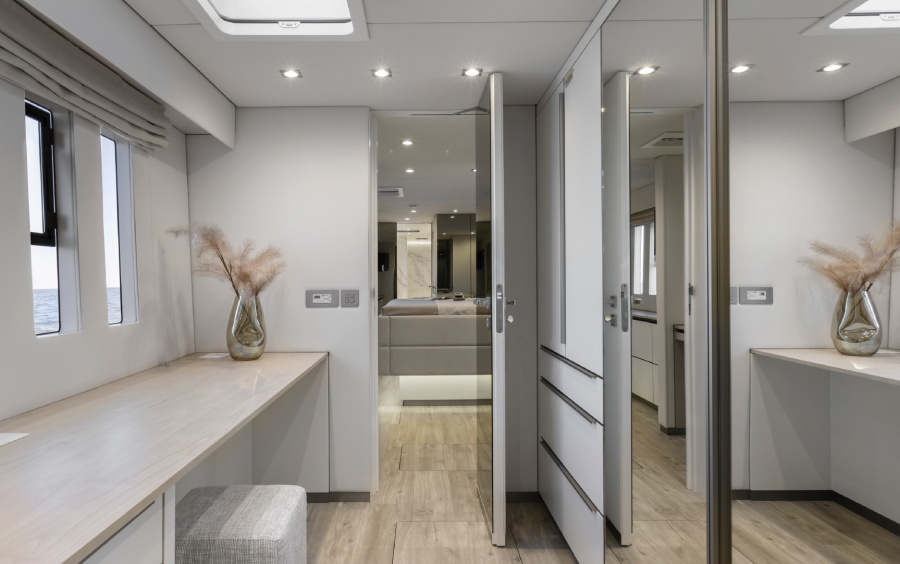

| Owner’s cabin: 1 storage with shelves, 1 storage with hangers, 2 night shelves, bed 160x200 |

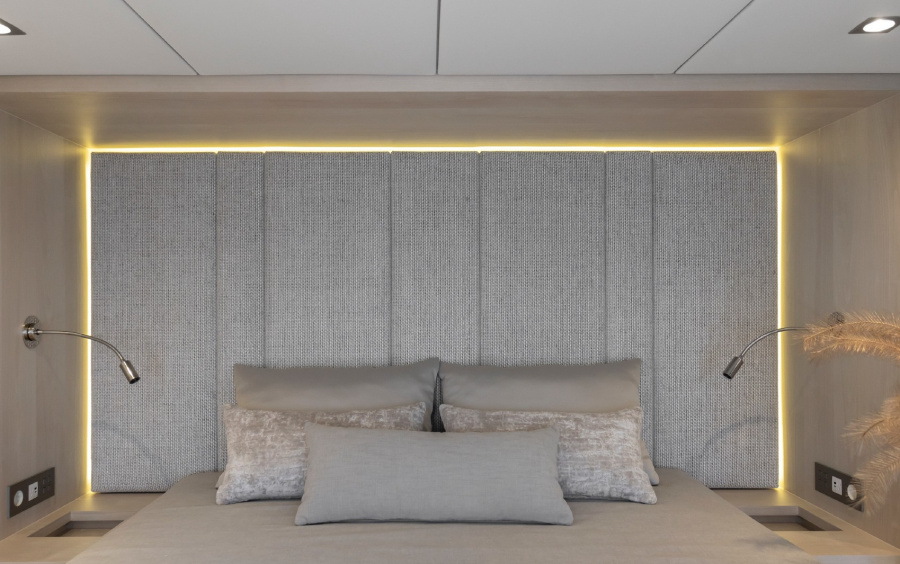

| Guest cabins: storage, 2 night shelves, bed 160x200 |
| Crew cabin: storage, night table, bunk bed |
| Saloon: fixed coffee table |
| Bathroom equipment (per bathroom): 1 towel rail, 2 hangers, 1 toilet brush, toilet paper holder depends on layout |
| Vinyl floor in saloon and cabins |
| Interior upholstered wall and ceiling panels in skai |

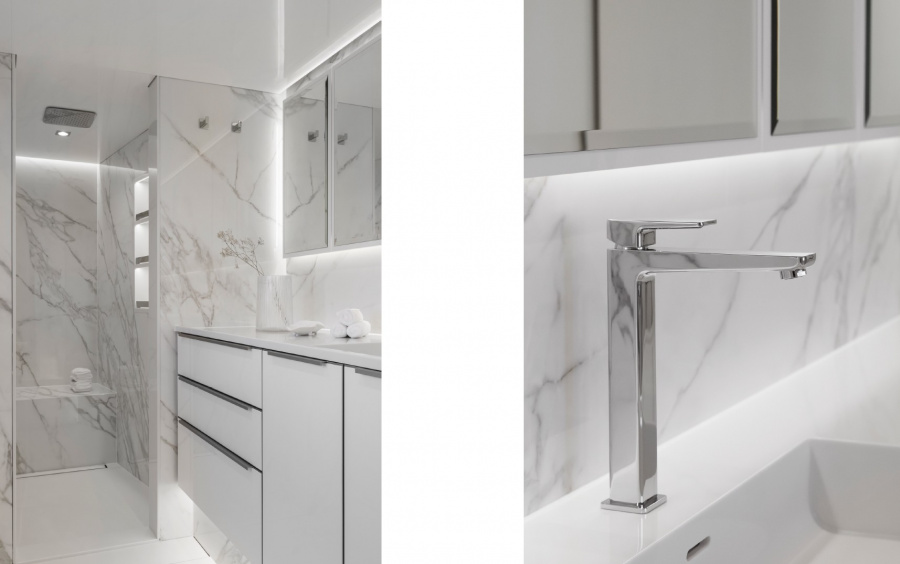

| All the walls in master bathroom finished with sintered quartz and in other bathrooms only one wall. |
| One wall in each guest cabin with mirrors |
| Upgrade of all kitchen appliences to Miele |
| Washing machine and dryer as separate units, upgrade from standard to Bosch |
| Frezer LIEBHERR Fkvest1805 in the front locker |
| Track/spot lighting in closet/organizer |
| Dyson portable vacuum cleaner |
| Master Bathroom electric towel waremer |
| Hanging storage in the Guest Cabin |
| Additional hanging storage in cabin |
| Ventilator set in each cabin, in the galley and on the deck |
| Cockpit bar module |
| Cockpit bar module sink with retractable faucet |
| Cockpit bar module Ice maker and Brita filtration system |
| Cockpit bar module low fridge for the bar module |
| Flybridge bar module |
| Flybridge bar module sink with retractable faucet |
| Flybridge bar module low fridge |
| Black aluminium sliding entrance door |
| Accessories with chrome finishing |

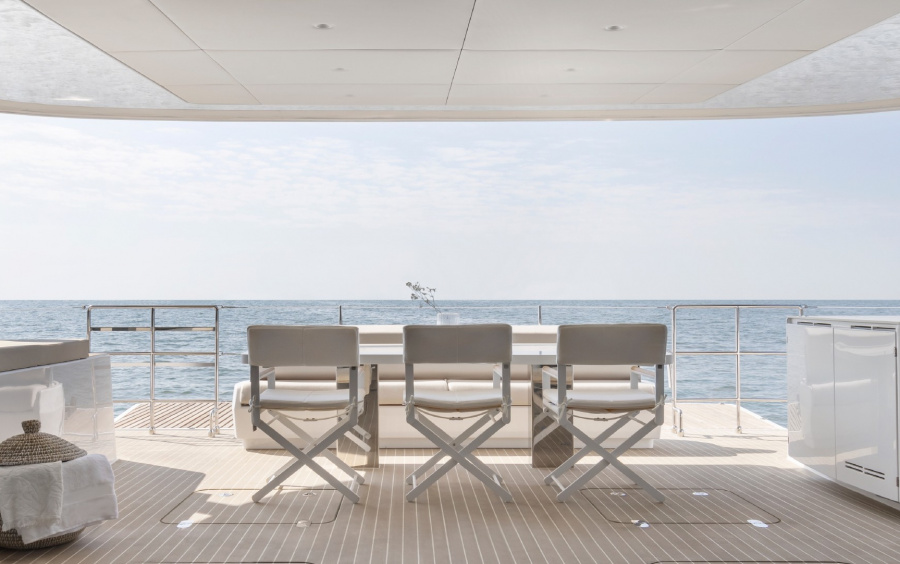

| Movable furniture: 3x flybridge dining chairs, 3x cockpit dining chairs, cockpit dining table |
| Additional dining chairs |
| Hull and deck in white gelcoat |
| Higher bimini- raised to 2100 mm |
| Modified hatches- to be open only from the inside and to be lockable |
| Locks on main saloon doors and Pantograph Door |
| Stainless steel piping instead of wires around the boat, to be raised to100 cm |
| Copper coat antifouling |
| Stainless steel latches for lockers and compartments with locks |
| Storage (locker) in the front terrace - for a freezers |
| Hidden telescopic swim ladder |
| Highfield CL460 Arctic Orca with Honda BF 80 Hp engine |
| Tender additional options (all) |
| Relocation of the life rafts, making new reinforcements. |
| Antifouling (with Epoxy primer) |
| Launching, name and hailing port inscriptions, Polish export fees |
Twin Diesel Volvo Penta D3 – 150 hp
